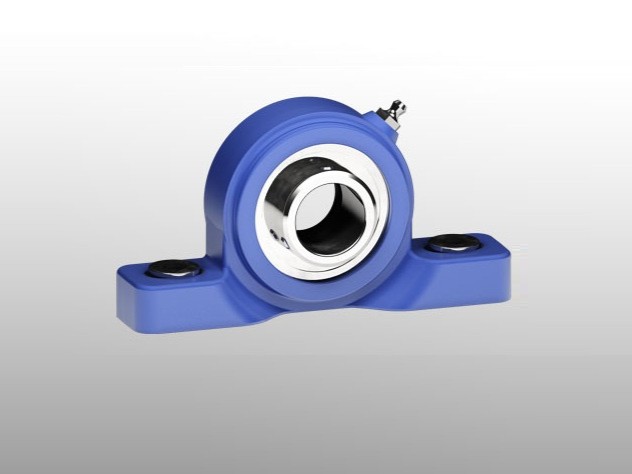

Tecom UCP/CX 2 Bolt Pillow Block Hygienic Bearing Units
Tecom UCP/CX 2 Bolt Pillow Block Hygienic Bearing Units
General Details
MATERIALS:
- Housing made out of blue Ral 5005 colour polyamide reinforced with glass fibers.
- Back gasket made out of NBR rubber for turning shaft seal.
- Stainless Steel Bearing AISI 440.
- Spacer for fixing reinforcement made out of stainless steel AISI 304.
- UNI 6592 support washer made out of stainless steel AISI 304.
- Greaser, straight type with 1/8 gas thread, made out of nickel-plated brass

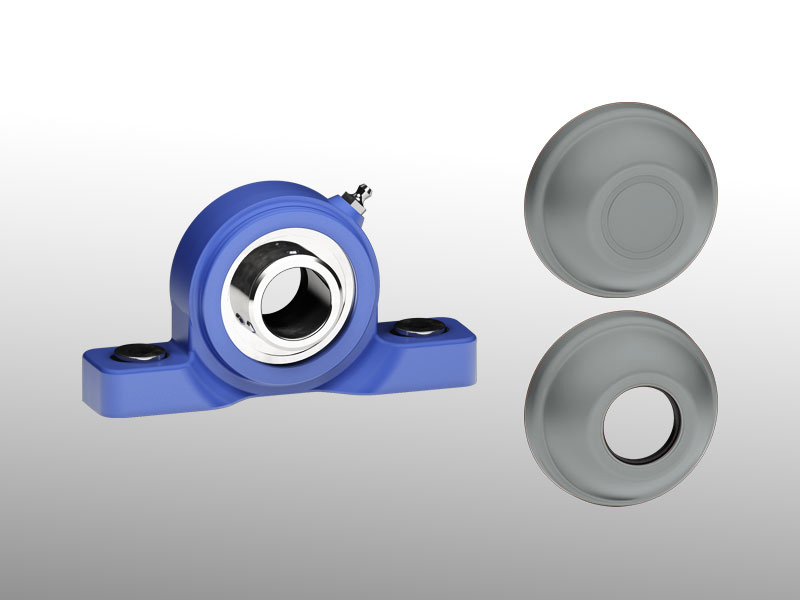

- Cover made out of grey RAL 7042 colour polypropylene (other colours on request)
FEATURES:
- Self-aligning bearings with solid body with closed surface to guarantee maximum hygiene.
- Suited to food production and packing areas
- Firm cover fixing requires hammer installation
- Full protection of bearing against external agents
- Maximum shaft alignment error 2.5°

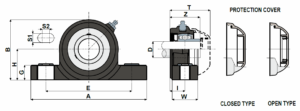

DIMENSIONS & SPECIFICATIONS:
| Stainless Steel Bearing AISI 440 | Cover Codes | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Series | Support CODES | Dimensions (mm) | Bearing load (N) | Bearing support load | Grey RAL 7042 | ||||||||||||
| E | A | S1 | S2 | G | H | B | I | W | Z | T | C | C0 | ||||||
| Blue Ral 5005 | (N) | Closed | Open | |||||||||||||||
| 20 | UCP 204 CX | 87762 | 96 | 130 | 13 | 10 | 20 | 33,5 | 65,5 | 18 | 30 | 36 | 49 | 8300 | 6600 | 5750 | 80254 | 80255 |
| 25 | UCP 205 CX | 87763 | 106 | 140 | 13 | 10 | 20 | 36,5 | 71,5 | 19,6 | 35 | 39 | 51,7 | 9150 | 7800 | 6900 | 80075 | 80076 |
| 30 | UCP 206 CX | 87764 | 121 | 163 | 13 | 10 | 20 | 43 | 84,5 | 20,7 | 36 | 41,7 | 55,7 | 12500 | 11200 | 9200 | 80011 | 80053 |
| 35 | UCP 207 CX | 87765 | 126 | 168 | 13 | 10 | 20 | 47,6 | 93,3 | 22,7 | 39 | 48 | 61,8 | 16600 | 15300 | 11500 | 80077 | 80078 |
| 40 | UCP 208 CX | 87766 | 136 | 185 | 13 | 10 | 20 | 50 | 100 | 22,5 | 38,6 | 51,5 | 70,7 | 20000 | 19000 | 11500 | 80256 | 80257 |
